Bearings are often called the “joints of sector.” Obtaining the option right straight influences your equipment’s reliability, life span, and upkeep costs. Numerous bearing failures don’t come from poor quality– they originate from wrong options. Points like lots calculation errors, forgeting rate limitations, or choosing the wrong lubrication method. These tiny mistakes can cause devices to damage down early in its life span. This overview strolls you with the whole selection procedure, providing engineers and purchase professionals a clear course from analyzing working problems to verifying the right bearing version.
Part One: What You Need to Know Before Beginning
Prior to you open up any bearing brochure, ask yourself one concern: Exactly what does this device require the birthing to do? The solution lies in five vital areas:
1. Lots Characteristics
Lots is the primary consider bearing selection. You need to determine three things:
Direction: Is it radial load (vertical to the shaft), axial tons (parallel to the shaft), or a combination of both?
Size: Is it light, moderate, or heavy? Any influence lots?
Nature: Is the lots steady or altering? Just how usually do influence tons occur and exactly how solid are they?
Take a belt conveyor as an example. The bearings at the drive end tackle radial tons from belt tension, the weight of the belt and rollers, plus the shaft setting up. When determining, you need to consider different operating problems– start-up, typical operating, stopping– and utilize the worst-case scenario for your design.
2. Speed Problems
(bearings for steel mill)
Rate is one more vital element affecting bearing life. According to exhaustion life concept, bearing life has an inverted partnership with rate. For variable speed conditions, you need to compute the equivalent speed. Take a rotating kiln support roller– its speed could vary from 0.5 to 2.5 r/min. You would certainly require to weight the running time at each speed to obtain an equal value.
Something to look out for: knowing only the maximum speed can mess up your lubrication technique. The lube you pick based on full throttle could not form a proper oil film at lower speeds. Also, if your device has long idle durations, you ought to discuss that– otherwise nearby tools vibrations could trigger false brinelling damage.
3. Required Life Span
Bearing life span is usually expressed as L10h (the variety of hours that 90% of a bearing team will certainly get to before fatigue spalling shows up). An usual mistake is going with an overly long life– once L10h exceeds 100,000 hours, the bearing dimension gets also large. It comes to be tougher to lubricate, torque rises, and it becomes more conscious minimal tons. In the end, it could stop working for factors besides tiredness.
4. Room Constraints
You need to recognize your readily available room limits from the start– shaft diameter variety, real estate birthed size, axial size restrictions. As soon as you know the matching shaft diameter and readily available room, you can swiftly narrow down your options.
5. Running Accuracy Requirements
Most applications do just fine with common precision bearings. But also for high-speed or high-precision tools like maker device pins, you’ll require P5, P4, or even greater grades. Just bear in mind that choosing greater precision without a real need will certainly increase expenses substantially. Match the grade to your actual demands.
Part Two: Matching Bearing Types to Functioning Conditions
As soon as you have those specifications clear, the following step is to match the best bearing type based upon load direction, dimension, rate, and imbalance resistance.
1. Tons Direction: Radial, Axial, or Incorporated?
This is the most standard filter. It can aim you to a couple of candidates today:

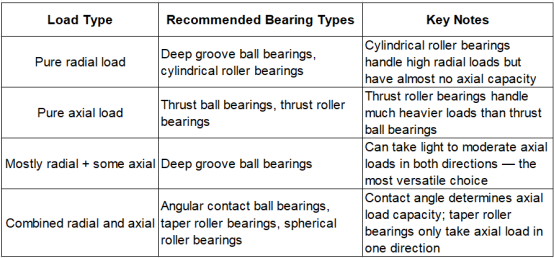

When the axial-to-radial tons ratio (Fa/Fr) adjustments, your selection reasoning modifications also. At reduced proportions, opt for deep groove sphere bearings. At moderate proportions, make use of small-contact-angle angular get in touch with bearings or taper roller bearings. At high proportions, you’ll require large-contact-angle bearings, or think about incorporating a drive bearing with a radial bearing.
( Radial)
2. Lots Dimension: Sphere Bearings or Roller Bearings?
This is a classic selection:
Light or modest loads: Select ball bearings (deep groove or angular call). The point call between spheres and raceways offers reduced rubbing, making them ideal for medium to high speeds.
Hefty or effect tons: You need to use roller bearings (round, round, or taper). Line contact in between rollers and raceways offers much higher lots capacity and much better impact resistance.
3. Rate: Ball Bearings for High Speed, Roller Bearings for Low
Usually talking, round bearings have higher speed restrictions than roller bearings. For high-speed applications (over 1000 r/min), placed round bearings at the top of your listing. When you need the greatest feasible rate with pure radial lots, open deep groove round bearings are your best option. For incorporated lots at high speed, angular contact sphere bearings are the means to go.
Cylindrical roller bearings, taper roller bearings, and needle bearings have fairly reduced speed limits. They’re mainly suited for low-to-medium speed, heavy-load conditions.
4. Misalignment Resistance: Do You Need Self-Aligning?
This set often gets overlooked yet it’s extremely important. You must take into consideration self-aligning bearings when:
Bearing real estate bores do not align well
The shaft isn’t rigid sufficient and flexes during procedure
The bearing span is lengthy and thermal growth causes angular misalignment
You’re making use of different split housings (like cushion block bearings)
Spherical roller bearings and round sphere bearings have concave external ring raceways. This permits a certain quantity of angular imbalance in between the internal and external rings without unsafe edge anxiety. They can compensate for both vibrant deflection and fixed installment errors.
On the other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have really minimal self-aligning capacity. Even a small angular misalignment can trigger anxiety focus at the roller ends, causing high edge pressures that dramatically shorten birthing life. Deep groove sphere bearings do have some self-aligning capacity, yet the allowed angle is small– exceeding it will certainly decrease life also.
5. Axial Expansion Settlement: Fixed End or Floating End?
Lengthy shafts increase and contract with temperature level changes during operation. That means you need to establish your bearing arrangement with one fixed end and one drifting end.
NU and N collection cylindrical roller bearings have no flanges on the internal ring (or on one side). This allows the shaft action openly in the axial direction about the housing– making them suitable as floating-end bearings. NJ and NUP series can offer axial positioning in one or both instructions, so they function well as fixed-end bearings. This configuration is very common in transmissions and electrical motors.
Component 3: BMB Product at a Glance

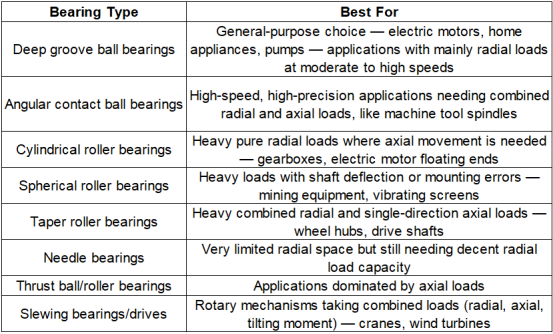

BMB uses a total series of industrial bearings, covering all the major types we’ve talked about. This fast referral table links the selection principles over directly to specific item groups:
Part Four: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals
( Axial)
1. Accuracy Grades
Criterion precision (P0) helps the substantial majority of basic equipment. For precision tools like device spindles or aerospace elements, you’ll need P5 or greater. Tighter accuracy means tighter dimensional resistances and far better running precision– yet likewise higher expenses.
2. Inner Clearance and Preload
Bearings require to maintain correct interior clearance after installation. Way too much clearance leads to vibration and noise. Too little, and thermal development can trigger the bearing to confiscate. In special cases like maker tool spindles, preload (using negative clearance) is utilized to improve system rigidity and rotational precision.
3. Lube Option
Lubrication is a make-or-break aspect for bearing life. Grease benefits most moderate-speed and temperature applications– it’s basic to seal and can run maintenance-free for long periods. Oil (oil bath, oil mist, jet lubrication) is much better for high-speed or high-temperature problems, as it dissipates heat better. When picking a lubricant, check the speed factor (ndm worth). Don’t simply choose based on optimum speed– the oil you pick might not create a proper film at reduced speeds.
4. Securing Program
Pick the seal kind based on your atmosphere: contact seals keep dust out well yet include some friction; non-contact seals work for broadband however supply less security versus contamination; open bearings rely on external sealing systems.
Part 5: Life Estimation– From Theory to Technique
( or Combined Basic Filter Table)
At the end of the day, you need to confirm whether your selected bearing will really satisfy the predicted life span. This is where fundamental ranking life calculation can be found in.
The basic score life L10 formula (ISO 281 standard):
For round bearings: L10 = (C/P) THREE × (10 ⁶/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours
Where:
C: standard vibrant tons rating (kN)– discovered in the product brochure
P: comparable vibrant lots (kN)– takes both radial and axial tons into account
The comparable vibrant load P is calculated as: P = X · Fr + Y · Fa
Fr is the radial lots, Fa is the axial load
X and Y are coefficients that depend upon birthing type and the Fa/Fr ratio– examine the catalog for these worths
For even more requiring conditions, you can use change aspects: Ln = a1 × a2 × a3 × L10
a1 is the integrity variable (a1 = 1 for 90% dependability, concerning 0.21 for 99%)
a2 is the product element (high-grade bearing steel can reach 1.5 to 2)
a3 is the operating conditions aspect (great lubrication and cleanliness can provide 2 to 3)
With this computation, engineers can validate that the chosen bearing fulfills the required service life. It additionally helps compare several options and make data-driven choices.
This guide has actually strolled you with the complete selection path– from examining working conditions, to matching the ideal bearing type, to verifying life expectancy. Understanding and applying this methodology will certainly aid you make exact, efficient, and economical bearing decisions across a wide range of commercial applications.
